Many have proclaimed the obsolescence of the aircraft carrier in the face of modern weapons. I've previously discussed the threat to aircraft carriers from missiles, both cruise and ballistic, and why neither is as effective as some pundits have claimed. However, the last major threat, from the submarine, is probably the greatest danger to surface forces. Modern submarines can be divided into two categories, nuclear attack submarines (SSN) and diesel-electric submarines (SSK), with very different threat profiles.

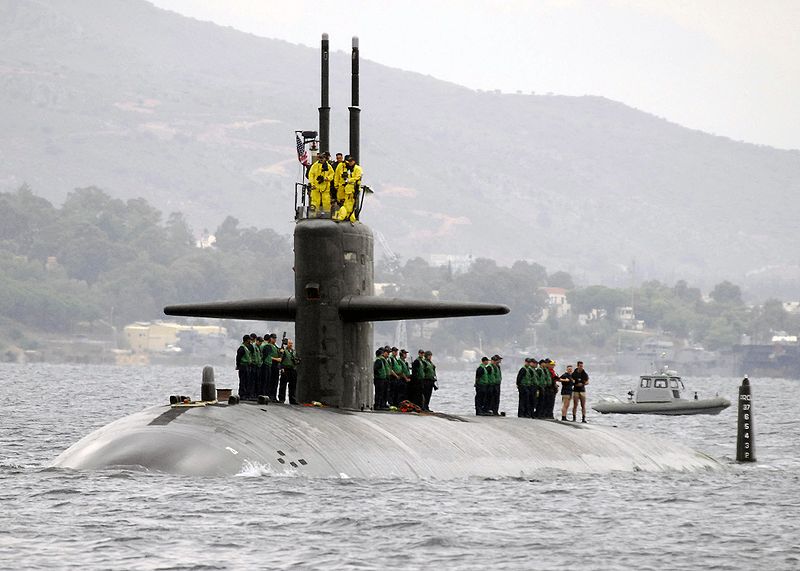

USS Oklahoma City (SSN-723)
The SSN is probably the greatest threat to the carrier, and the only real competition for the title of the modern capital ship. It has the strategic and tactical mobility to hunt a carrier on the open sea, and unlike any other weapon, it has a reasonable chance of reaching a carrier undetected and unattacked. Only 6 navies1 currently operate SSNs, and only the USN operates more than a dozen.

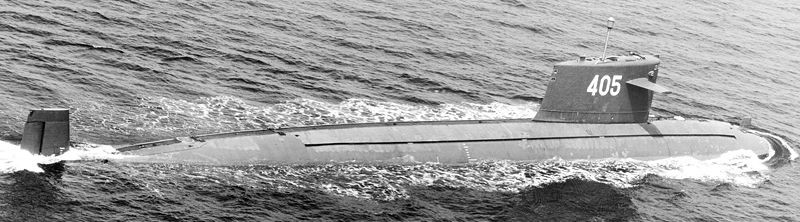

Chinese SSN on the surface
Stealth in the form of silence is the defining characteristic of the submarine, and this shapes their operations. The best place for an SSN to be is deep and slow. Coming close to the surface exposes the submarine to a lot more sensors, while high speed makes noise and degrades sonar performance. The usual tactic is to sprint and drift, listening between high-speed transits. US and British submarines are significantly quieter than their opposite numbers, and the best estimates I have of the performance of the Chinese Type 93 submarines puts them at about the same noise levels as the early US Los Angeles class SSNs of the mid-70s.

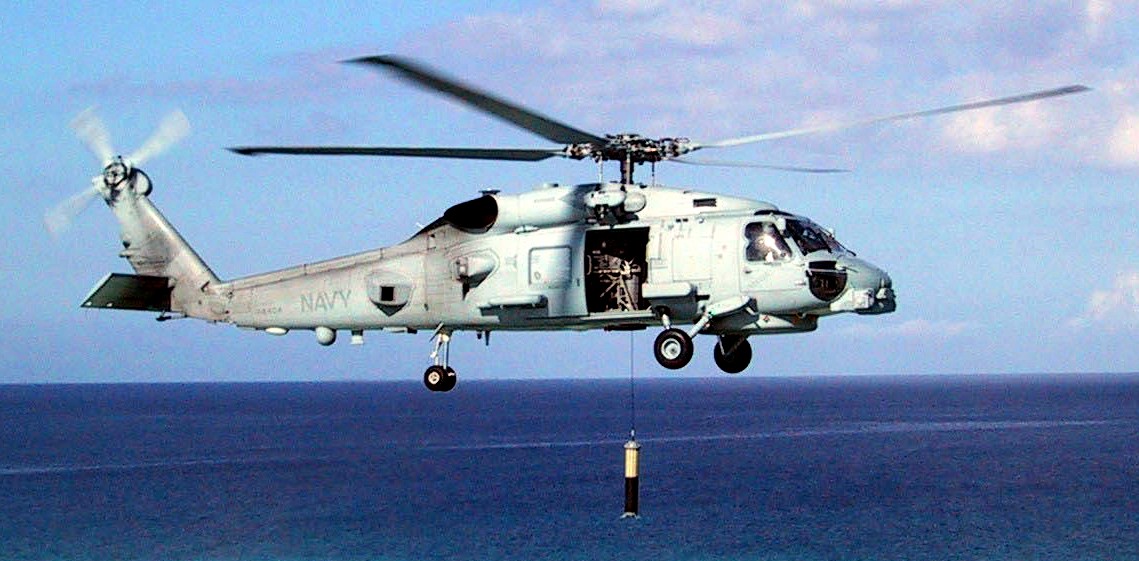

An MH-60R Seahawk ASW helicopter
The water that protects submarines is a double-edged sword. It also makes it very difficult for a submarine to see what is going on around it, or to communicate with the outside world.2 And just like missiles, submarines need to know where the carrier is before they can attack. A submarine at periscope depth3 can communicate via satellite, but this requires the submarine to come close to the surface and slow down, so it’s not something submariners want to do anywhere near the enemy. Practical sonar ranges are a very complicated subject, but I’d estimate that a submarine would need to be steered to within 100 nm or so of the carrier to be able to detect it and close independently. And as it closes with the carrier, it has to be careful. The CVBG will be on the lookout for submarines, and it will be doing everything it can to make their lives difficult and short.

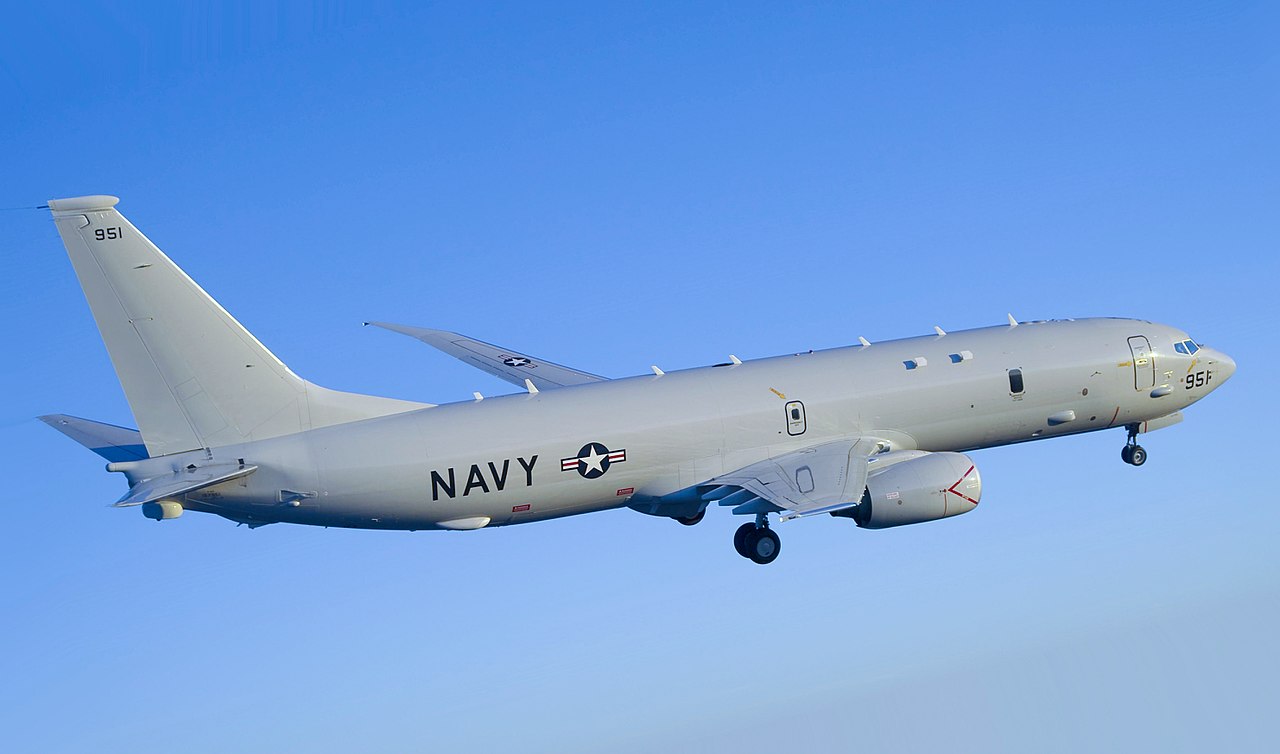

Boeing P-8 Poseidon
The resulting game looks a lot like the hunt for the carriers.4 During the Cold War, the biggest threat to US sea power was the Soviet submarine fleet, and one of our main weapons was SOSUS. This was a network of very sensitive fixed sonar arrays placed in choke points around the world, to provide broad targeting data to various ASW5 forces. These forces would then precisely locate and destroy the submarines. SOSUS still exists, and has reasonable coverage anywhere the US is likely to face SSNs. Attacking SOSUS targets is a specialty of maritime patrol aircraft like the P-8 Poseidon. Some sectors may be assigned to US SSNs updated via satellite, which are slower but have greater staying power. Even if the US cannot manage to attack the submarine using other forces, the CVBG is warned and can either take evasive action or try to kill the submarine using its own weapons.

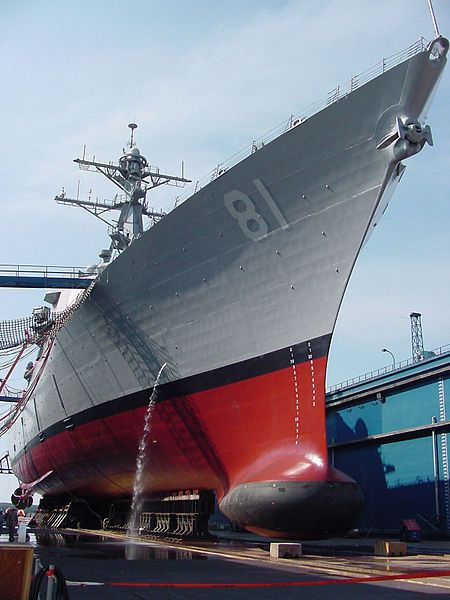

Sonar dome on USS Winston S Churchill
The carrier has formidable defenses. Sometimes, submarines are attached and can be used to hunt enemy SSNs, although the US hasn't solved the communications problems, either. All US CGs and DDGs carry at least a bow sonar, and many have towed-array sonars as well. One or more of them might be assigned to do sprint-and-drift of its own, to pick up any shadowing submarines. Both carrier and escorts carry ASW helicopters, which will be dispatched to investigate any contacts. A hostile submarine will be localized and then attacked by either VL-ASROC6 or a helicopter-dropped torpedo.

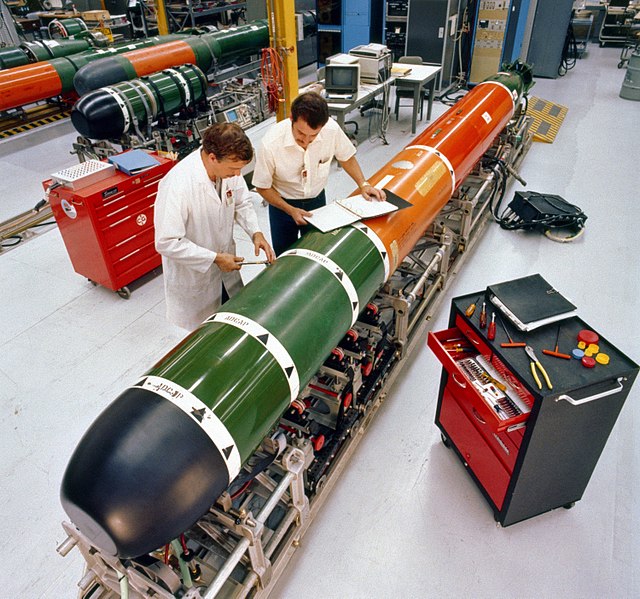

US Mk 48 torpedo undergoing maintenance
So how close does the submarine have to get before it fires its torpedo? The wiki article for the Chinese Yu-6 lists the range as 26 nm. Unfortunately for the submarine, it’s going to have to get a lot closer. Torpedoes are not that much faster than their targets. The Yu-6 is capable of 65 kts in attack mode, but the range figure is for cruise mode, which doesn’t have an associated speed. Even a 65 kt torpedo is only about twice as fast as a carrier, and the sound of the torpedo being fired is enough to alert any ship with a live sonar operator.7 This means that the target ship is likely to be running away, and the submarine has to close to within half of the effective range before launch. Furthermore, the target and its escorts are likely to counterattack, forcing the submarine to evade and cut the torpedo’s wires. A torpedo has limited space for sonar, and without guidance updates from the launching submarine, it can be evaded. All of this is likely to limit submarines to launch ranges of 8 nm or less.

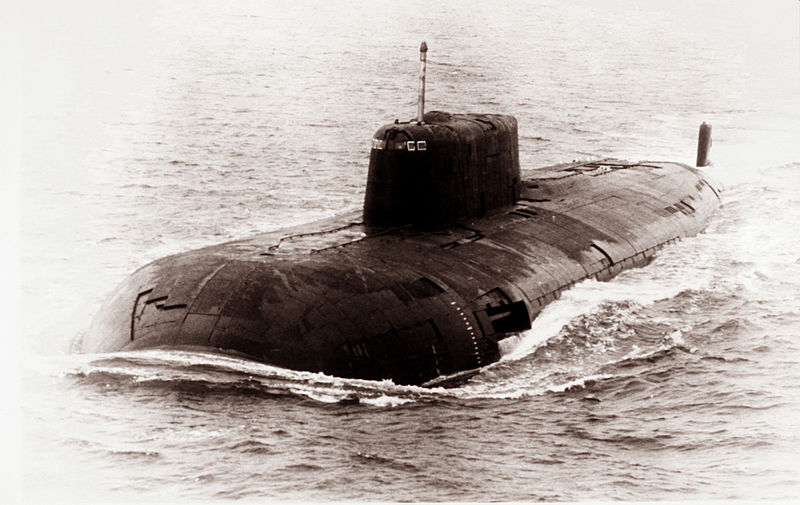

Soviet Oscar class missile submarine
Or can they avoid this by using missiles? Unfortunately, this is not likely to be a healthy choice. At best, an SSN might be able to fire 18 missiles in a single salvo.8 Even with the benefit of popping up close to the target (which requires going through a lot of those same defenses they’re trying to avoid), this is unlikely to be enough. Launching missiles is extremely noisy, and Aegis is set up to take cues from sonar to reduce reaction time. The missiles will likely be shot down, and the patch of sea the submarine launched from is not going to be a safe place.

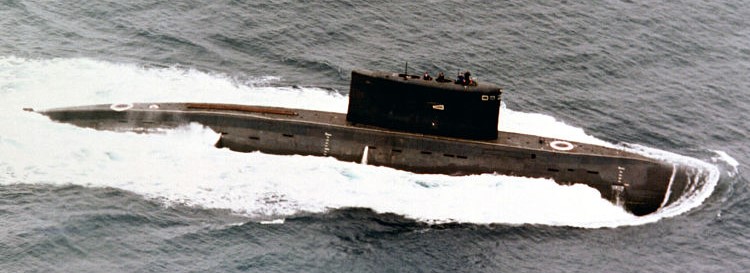

Kilo class SSK
Diesel submarines present a very different threat. While on batteries, they are nearly silent,9 but the low energy density of batteries limits range. The Russian Kilo class has a range of 400 nm at 3 kts, but only about 13 nm at its maximum speed of 21 kts. They can recharge the batteries by coming to periscope depth and snorkeling, but this is fairly loud, and makes them easier to detect by other means.10 SSKs completely lack the strategic and tactical mobility of SSNs, and have been described as mobile minefields. That said, minefields are still dangerous in shallow or confined waters, and SSKs are cheap enough that many powers have them.11 In the open sea, a CVBG is in very minimal danger from SSKs. In a choke point like the Strait of Hormuz, SSKs are a serious threat, but one that the US takes measures to deal with.

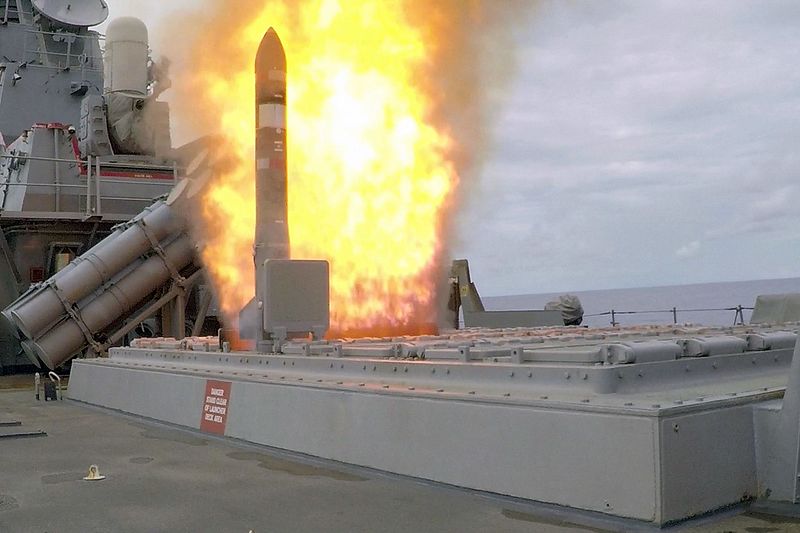

VL-ASROC launch
ASW is a mysterious field, and I’m less willing to put hard numbers down here than I am on missiles. However, we can compare the threat we face today with that of the 1980s, and the results are positive. At the height of the Cold War, Russia operated a fleet of over 60 SSNs, and the US believed it could fight and win the war against them. They have about a dozen operational today,12 while China has 10. I also believe that signal processing has improved faster than submarine quieting, particularly on the part of our enemies.

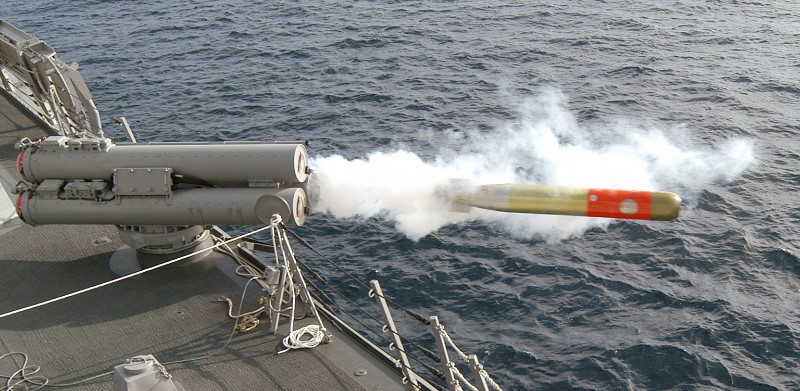

Mk 46 torpedo launched from a destroyer
The picture isn’t quite as rosy on the SSK side. Sonar performance in shallow waters, particularly places where you have different bodies of water mixing, is often very poor. This is where most ASW research in recent years has been going, although the results are obviously classified. Improvements in unmanned underwater vehicles offer hope in this area, as do new sonars and better signal processing. This whole area is fantastically complicated, and I don’t have the information to make firm predictions. That said, there is serious concern in the US undersea warfare community today about the readiness of the fleet for serious ASW. Sonar technicians spend more time manning machine guns to keep away small boats than they do honing their craft. There are signs that this trend is going to reverse, and we still maintain a solid foundation in ASW. The submarine is by far the greatest threat to the fleet today, but it is one that can be managed.13
1 China, France, India, Russia, the UK and the US. Brazil has one on order, and Australia decided to buy them in 2021. ⇑
2 Dreams of submarines working closely with surface ships go back over a century. None of them have worked well due to the communication problem. ⇑
3 Close enough to the surface to put a periscope or other mast up, but still mostly concealed underwater. ⇑
4 This sort of common pattern happens regularly in naval operations. ⇑
5 Anti-Submarine Warfare ⇑
6 A vertically-launched torpedo-carrying missile ⇑
7 This may not be strictly true. Some torpedoes are capable of quietly swimming out of their tubes, but torpedoes in general are noisier than submarines, so the target will definitely pick them up fairly far out. ⇑
8 The Russian Oscar class might be able to put up to 28 weapons in the air at once. Doesn’t really change the math. ⇑
9 Nuclear submarines always make some noise from coolant flow in the reactor, and usually pump noise as well. ⇑
10 Some SSKs carry Air-Independent Propulsion (AIP) systems that can recharge the batteries without snorkeling. These are still fairly limited, although they do give greater range. The noise profile of such systems is something I don't know. ⇑
11 In fairness, many of those powers may not be able to operate them effectively. The recent loss of the Argentine submarine San Juan is the most obvious example, but there have been serious problems in many other navies, including Germany and Australia, who you would think would know better. ⇑
12 Wiki gives a higher number, but the Russian Navy since the 90s is notorious for calling ships operational pretty much up until they sink at their moorings. Not to mention other indications of their incompetence. ⇑
