The first shots of the Second World War were fired by a battleship. The German pre-dreadnought Schleswig-Holstein signaled the start of the German assault on the Polish supply depot of Westerplatte by opening fire. Commandoes carried aboard the ship attempted to assault the base, but were repulsed, and the Poles held out for a full week in the face of heavy German attacks, including bombardment from Schleswig-Holstein.
A camera crew filming Schleswig-Holstein's bombardment of Westerplatte
A total of six German battleships served during WWII, the most diverse mix of ships of any of the major powers.1 Two, Schleswig-Holstein and Schlesien, were veterans of Jutland, built to designs pre-dating Dreadnought. The next pair, Scharnhorst and Gneisenau, were among the handful of interwar capital ships that didn't approach the 35,000 ton limit of the Washington Naval Treaty. Armed with 3 triple 11" turrets, they were designed to fight the French Dunkerque class, and proved quite effective during the war. Bismarck is probably the most famous battleship in history2 and her sister Tirpitz is also well-known. Possibly the most powerful battleships ever completed in Europe, mostly due to their designer's blatant disregard for treaty limits, these were essentially modernized versions of the WWI Bayern class, with 4 twin 15" turrets, a speed of about 30 kts, and an armor scheme of WWI vintage, instead of the all-or-nothing schemes used in the allied treaty battleships.

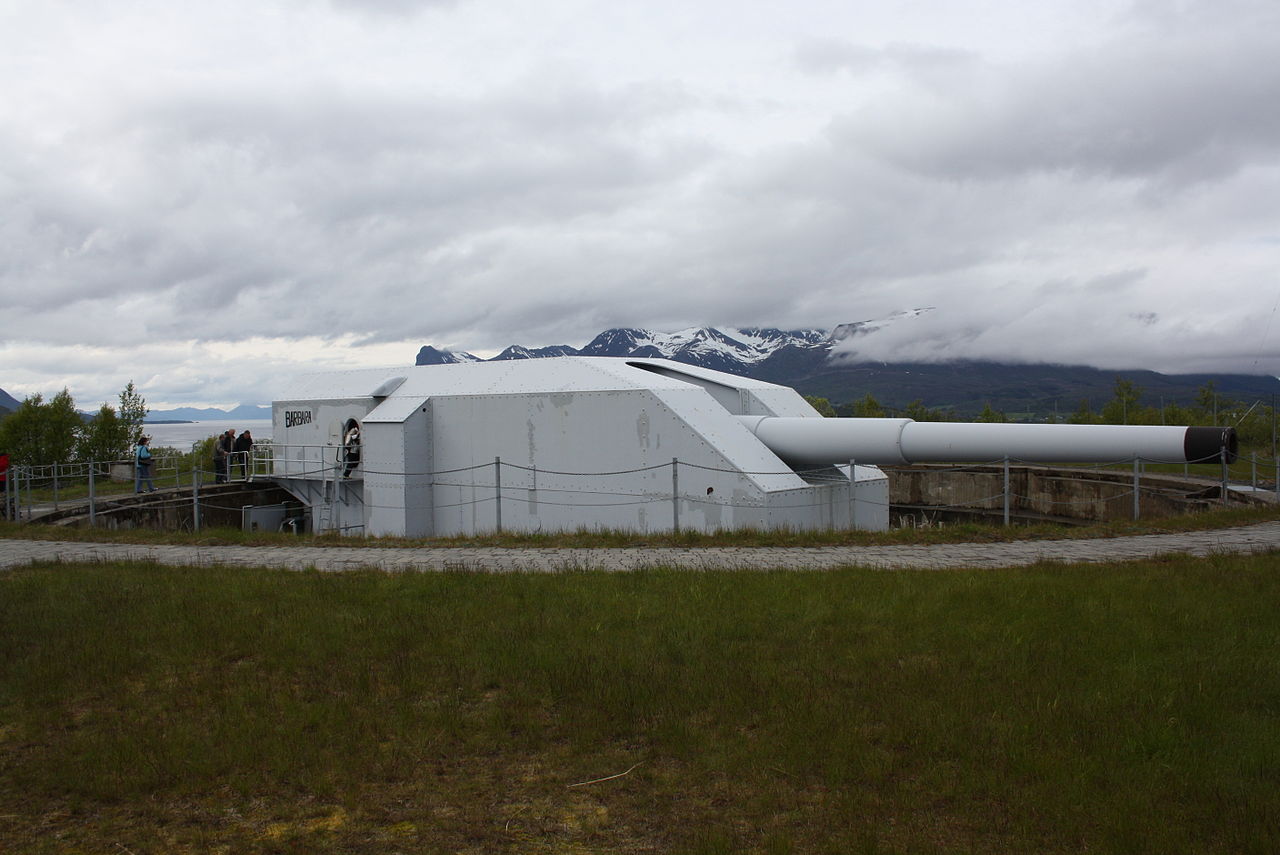

16" gun intended for the H-class, mounted at Trondenes Fort, Norway
Nor was Hitler satisfied with this fleet. He planned an additional six ships of the H class,3 initially an enlarged version of the Bismarcks with 16" guns. The keels of the first two were laid down shortly before the outbreak of war, and all six were suspended in 1939. As the war went on, the design was revised numerous times to take into account the lessons of the war, and Hitler's growing megalomania. While the 1939 design had been intended to displace 56,000 tons, roughly the size of the Iowas, the final 1944 version (H44) was over twice that.4

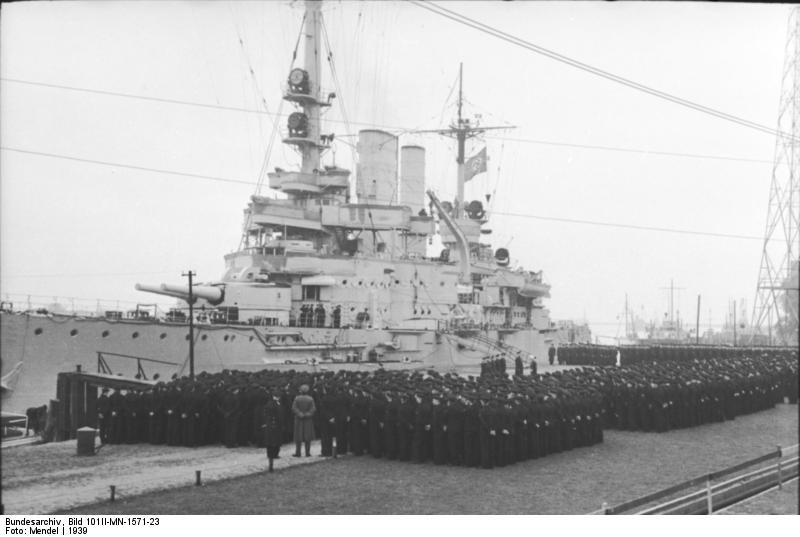

Schlesien in 1939
The Germans used their battleships rather differently from the Americans and British. They had no carriers to screen, and never attempted to contest the sea with their surface fleet for more than short periods. The modern ships spent the majority of their careers either raiding commerce or threatening to do so. While this was not entirely useless, it probably didn't justify the investment made in the ships. The pre-dreadnoughts spent most of the war in training service, occasionally being used to provide support to operations in the Baltic.

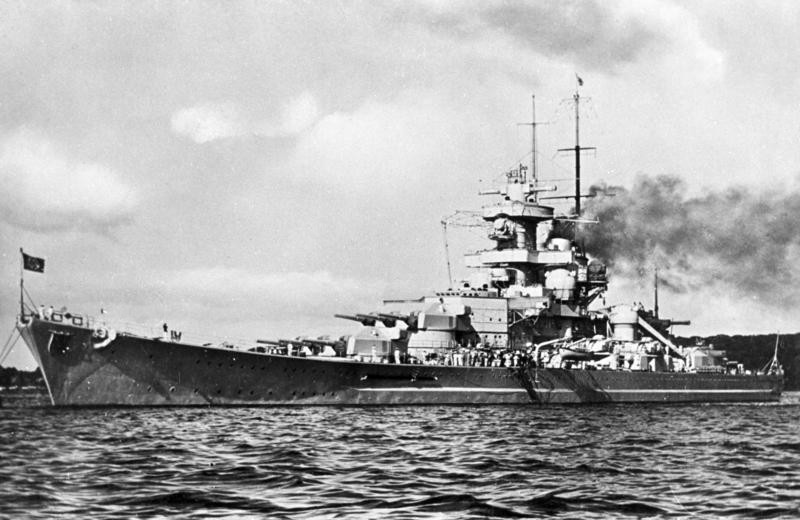

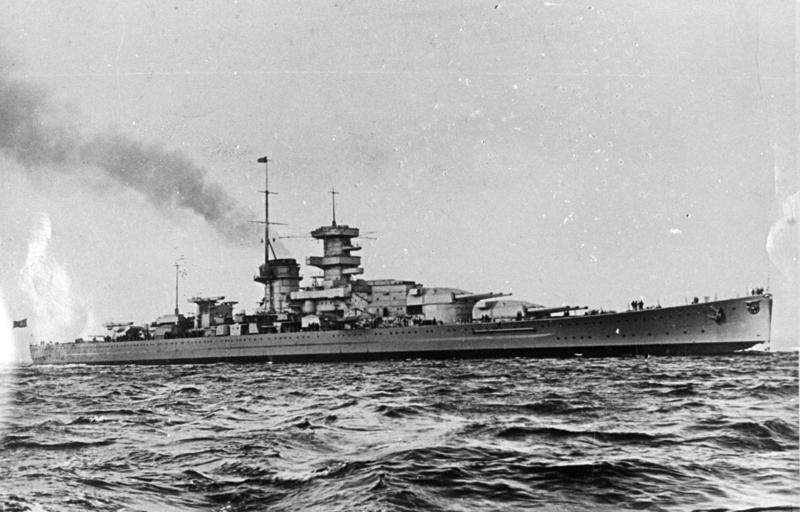

Gneisenau very early in her career5
Bismarck and Tirpitz were still under construction at the outbreak of the war, but Scharnhorst and Gneisenau were in action from the start. They made a couple of sweeps into the North Sea, most notably sinking the armed merchant cruiser Rawalpindi off the Faroe Islands in November of 1941. They first saw serious combat during the invasion of Norway. On April 9th, 1940, the ships encountered the battlecruiser Renown. Gneisenau landed a pair of hits on Renown, lightly damaging her, while the British ship struck back with a more damaging set of hits, before the action was broken off due to fear of a British destroyer attack. Both ships returned to port to repair the damage they'd suffered.
Scharnhorst firing on Glorious
In early June, they sortied again, this time to interfere with the allied evacuation of Narvik in northern Norway.6 There, the German ships had an incredible stroke of luck, catching the aircraft carrier Glorious unprepared for action. She had no airplanes airborne, only two-thirds of her boilers hot, and an escort of only two destroyers. All three British ships were swiftly dispatched, although one of the destroyers managed to torpedo Scharnhorst, doing substantial damage. A few weeks later, as Gneisenau returned to Germany, she was also torpedoed, this time by a British submarine.
Gneisenau with the revised bow
The damage put both ships out of action until the beginning of 1941, when they sortied into the Atlantic, intending to attack convoys. The effort was less than a total success, as the two ships sank only 22 merchantmen over the course of the 60-day cruise. They did manage to carry out their orders to avoid action with British capital ships, despite encountering three battleships protecting various convoys. The two ships finally reached Brest, on the French coast, in March. There, they were subject to intense air attack, the resulting damage preventing both of them from participating in the next German battleship action.

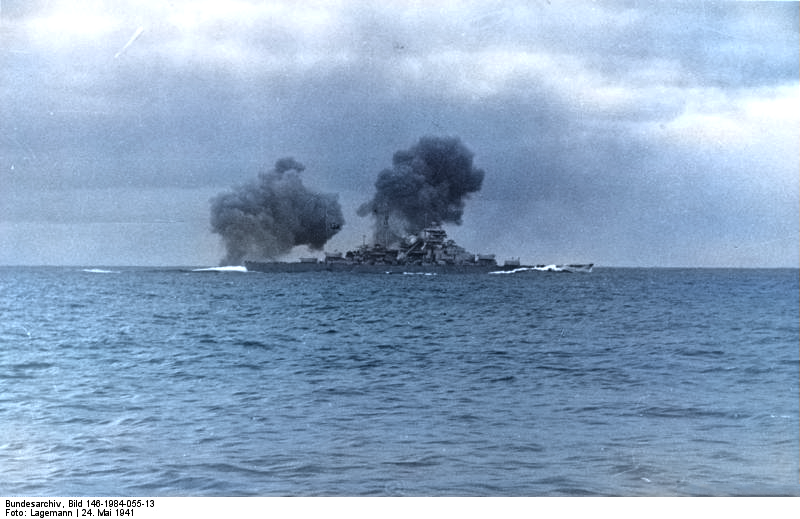

Bismarck firing on Prince of Wales at Denmark Strait
By May of 1941, the Bismarck was finally ready, and it was decided to send her into the Atlantic in another effort to disrupt the vital Atlantic convoys. Bismarck, accompanied by the heavy cruiser Prince Eugen, sortied through the Denmark Strait, between Iceland and Greenland, but were detected by patrolling British cruisers, who called for help. The battlecruiser Hood, long the pride of the British fleet, and the new battleship Prince of Wales, still with yard workers aboard, responded. Within 8 minutes of the battle being opened, Bismarck managed to land a hit on one of Hood's magazines, leaving only three survivors. Prince of Wales fought on, hindered by teething problems with her turrets, and inflicted three hits on Bismarck. One flooded a generator room, while another caused flooding in the bow and rendered 1,000 tons of fuel oil unusable.

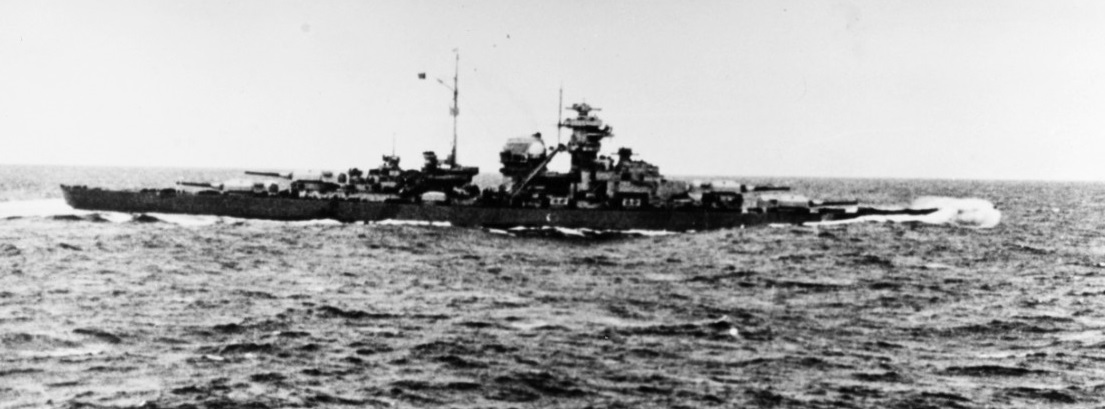

Bismarck shortly after Denmark Strait, before she and Prince Eugen separated
Bismarck covered Prince Eugen's break for the open sea, then turned for France. The British lost contact, and Bismarck almost slipped away from them, before a triangulated radio transmission allowed them to find her again. A carrier strike took out the German ship's rudder, and allowed the British to catch up.
Bismarck burning during her final battle
On May 27th, the battleships Rodney and King George V appeared over the horizon. They pounded Bismarck, reducing her to a floating wreck in half an hour. Bismarck was unable to fight back effectively,7 and the British sank her after less than two hours.8 Only 116 of the 2,200-man crew survived, as the U-boat threat prevented the British from lingering to perform rescue operations.

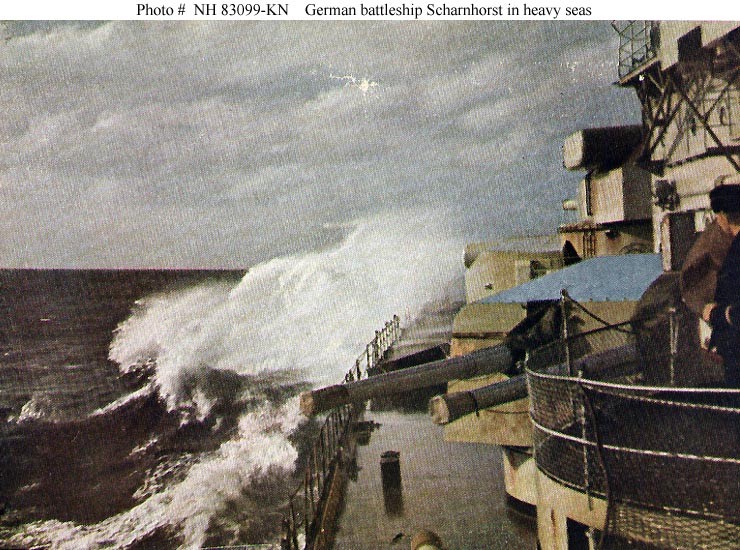

Scharnhorst at sea
All was quiet for the German capital ships until early 1942. The British air attacks on the ships in France were growing more and more determined, and it was decided to move them back to Germany, at least partially to counter the attack on Norway that Hitler believed was coming. While the obvious route was to head back the way they had come, around Scotland and into the North Sea, Hitler instead decided to send them through the English Channel, counting on surprise and the Luftwaffe to protect the ships. On the night of February 11th, Scharnhorst and Gneisenau, accompanied by Prince Eugen, sortied from Brest. It was almost 12 hours before they were detected, and subsequent coordination problems allowed all three ships to slip through the Straits of Dover undamaged. However, both battleships fell victim to mines in the North Sea, forcing them into drydock for repair.

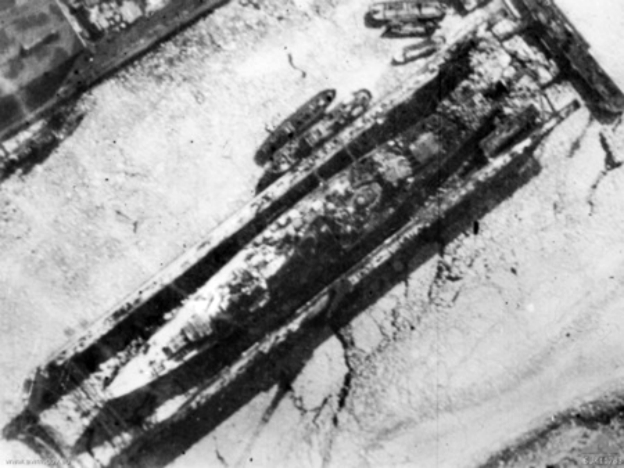

Gneisenau after being bombed
It took Scharnhorst a year to return to service, while Gneisenau never emerged from the yard. A few weeks after the Channel Dash, she was fully repaired and being readied for deployment to Norway. Part of this preparation was loading of her ammo, which for some reason was carried out while she was still in the drydock.9 A British bombing raid caught her in this state, and ignited much of the propellant in the forward turret, whose magazine couldn't be flooded because she was in drydock. The resulting explosion damaged the ship badly enough that she never went to sea again.
Tirpitz
Tirpitz was finally ready for action at this point, and sortied to Norway, where she would spend her entire career. There, she threatened the Arctic convoy lifeline to Russia. She never came close to an actual convoy, and only fired her main guns in anger once, bombarding Svalbard in September 1943 in company with Scharnhorst,10 but she had an outsize impact on the course of the war in the north. Most notably, the British ordered convoy PQ17 to scatter because they believed she was about to attack, leading to the near-annihilation of the convoy's ships. There was also the drain on British resources, as many warships were required to cover the convoys against the possibility of a sortie.

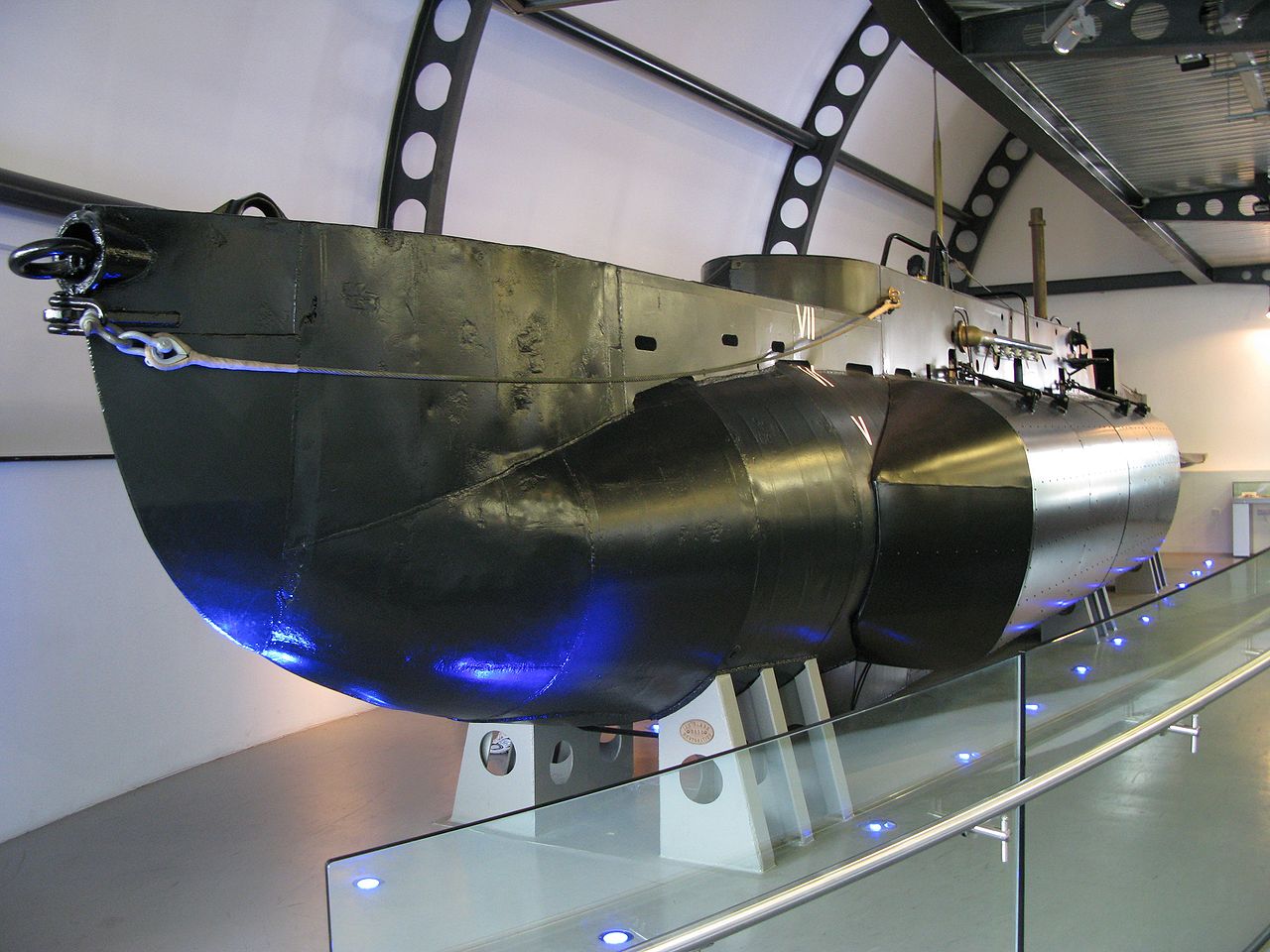

A midget submarine of the same type used against Tirpitz
Unfortunately, the lack of fuel and Hitler's orders to avoid risking the ship kept Tirpitz safely in the fjords, where narrow walls and heavy AA fire made conventional bombing ineffective. The first success came from a midget submarine attack in September of 1943 which disabled Tirpitz for six months.

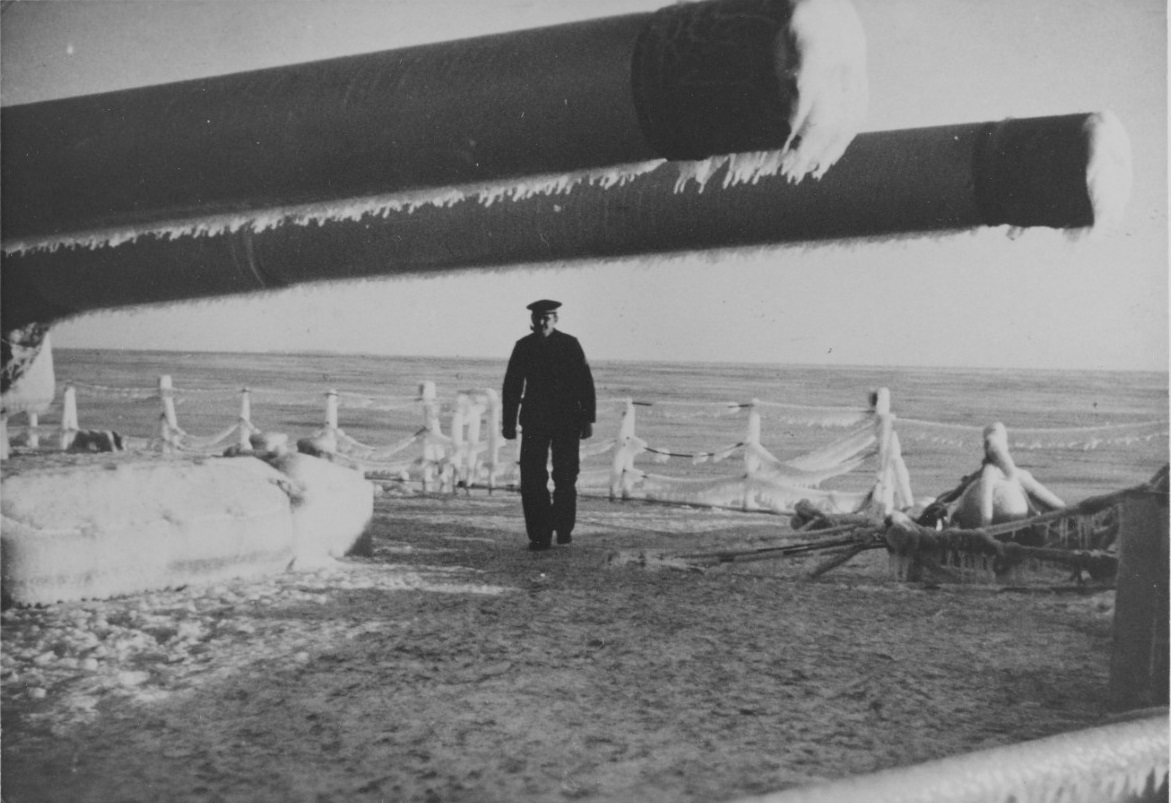

Ice on the deck and guns of Scharnhorst
Scharnhorst had joined her in Norway early that year, and was the primary threat to the convoys after submarine attack. In December, she sortied against Convoy JW 55B. The convoy's escorting cruisers used their superior radar to hold her off until the distant escort, led by the battleship Duke of York, arrived. The British battleship quickly gained the upper hand, hitting Scharnhorst at least thirteen times in exchange for a single graze, which temporarily disabled her radar. The German battleship, battered and limping, soon succumbed to torpedo attack. Only 36 men of the 1,968 aboard were rescued from the freezing water.

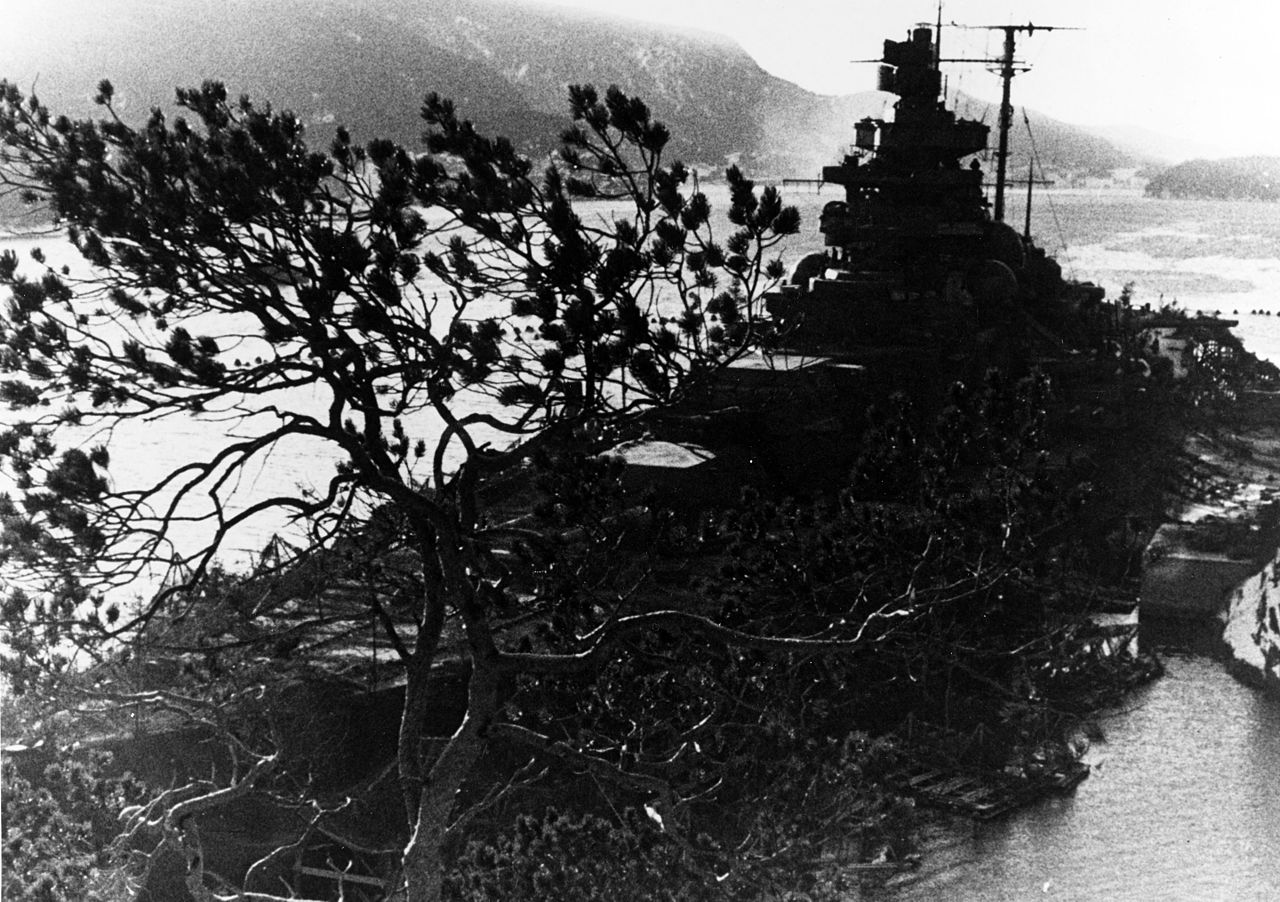

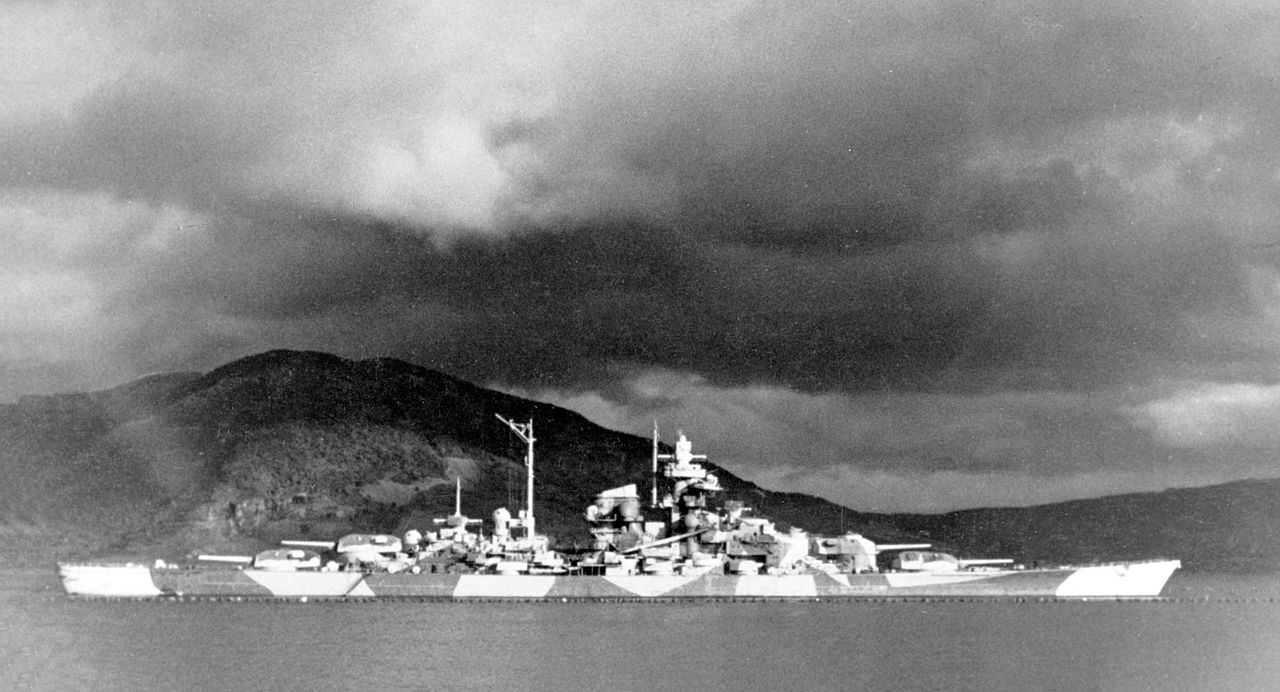

Tirptiz camouflaged in a fjord
Just as the Tirpitz was about to return to service in April 1944, British dive-bombers damaged the ship enough to force her to spend another two months in the "yard".11 The summer of 1944 saw more carrier raids, which did little damage due to the battleship's thick armor. Finally, the job of destroying the ship was turned over to the RAF, who attacked in September with the famous Tallboy bomb, damaging Tirpitz more badly than any previous attack. It was decided to convert her into a floating battery, to resist the allied invasion of Norway that Hitler insisted was coming. A second attack proved relatively ineffective, but the third scored two direct hits with the 12,000 lb bombs, capsizing the ship in minutes.

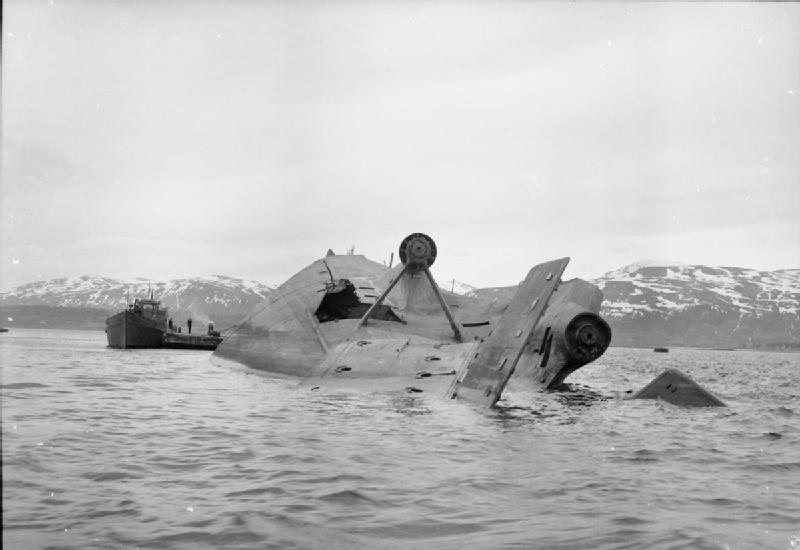

Tirpitz capsized
In retrospect, the German battleships of the Second World War were no more successful than their predecessors in the High Seas Fleet had been. While they scored a few tactical victories and tied down a lot of British warships, it's hard to argue that the effort spent on them shouldn't have gone to U-boats or tanks instead. Hitler, despite his criticism of Tirpitz and the High Seas Fleet in Mein Kampf, made the same mistakes when he took power, and for many of the same reasons. As usual, ships built without a good purpose ended up doing very little, even if they did achieve lasting fame.
1 While the Deutschland class Panzerschiffe are sometimes counted as capital ships, modern scholarship treats them as merely overarmed heavy cruisers instead, a convention I will follow. ⇑
2 This always annoys me. While she does have the rare honor of having single-handedly sunk another capital ship, she was otherwise ineffective, and didn't even finish her maiden voyage. For some reason, this seems to attract interest. See the Titan 1C for another example. ⇑
3 The Germans had some rather odd naming conventions. Unlike the sensible nations, they would order ships under an interim name, and the final name was not revealed until launch. Ships that were being built as replacements for other ships were named Ersatz (name of ship being replaced), while new ships that expanded the fleet were given a letter designation. ⇑
4 There are persistent rumors of a 700,000 ton H45 design armed with 80 cm guns. These have no basis in reality, and are the result of internet sketch designs. Author David Porter took them seriously, which meant that the H class Wikipedia article included the H45 for some time. ⇑
5 Note the straight stem. The ships were found to be wet forward, and a flared "Atlantic" bow was added. Also, I'm not sure if this was taken before she received her fire-control equipment, or if it was airbrushed out. ⇑
6 It's a little-known fact that the Allies didn't really lose the battle for northern Norway. With the defeat in France and Italy joining the war, they no longer had the resources to pour into it, and so withdrew. ⇑
7 I'm not really sure why Bismarck was so ineffective in this action. ⇑
8 There's a long-running and deeply stupid debate over what actually sank Bismarck, driven mostly by Wehraboos who seem to think that the ship being scuttled actually matters for some reason. The scuttling charges were indeed set off as part of the standard procedure for abandoning ship, but the fact that Bismarck was destroyed is entirely the responsibility of the British. ⇑
9 Today, safety regulations prohibit carrying ammo into drydock, but it was apparently common practice before and during WWII. ⇑
10 This may not be technically true, as the Germans apparently used her main guns as AA guns. That said, battleship guns are meant for surface targets, and trying to shoot down planes with them is just unnatural, and doesn't count. ⇑
11 All of the repairs were carried out in the Norwegian fjords, in some of the great epics of WWII naval engineering. ⇑
