I've previously covered the development of naval steam propulsion systems, focusing on those used aboard battleships. But from the dawn of the 20th century, other systems were developed to push ships through the water, and today, variants of these systems dominate the marine propulsion landscape.1
Diesel engines are checked aboard USS San Antonio
The first serious challenger to steam was the diesel engine, which began to go to sea even before WWI. It had three major advantages over steam. First, it was significantly more efficient at turning the energy of the fuel into rotation, with diesels having two to three times the horsepower per unit weight of fuel per hour as contemporary steam engines. Second, they were easier to run and maintain, requiring fewer crew. These two advantages made diesels attractive to merchant ships, although adoption wasn't universal until after WWII. And third, they were far faster to throttle. A boiler could take an hour to produce steam from a cold start if another boiler on the ship was available, and far longer if the entire plant was cold. This often meant that warships had to operate inefficiently, with more boilers online than they needed at the moment in case demand for steam increased. Diesels could be turned on and reach full power almost immediately, then shut down just as rapidly.

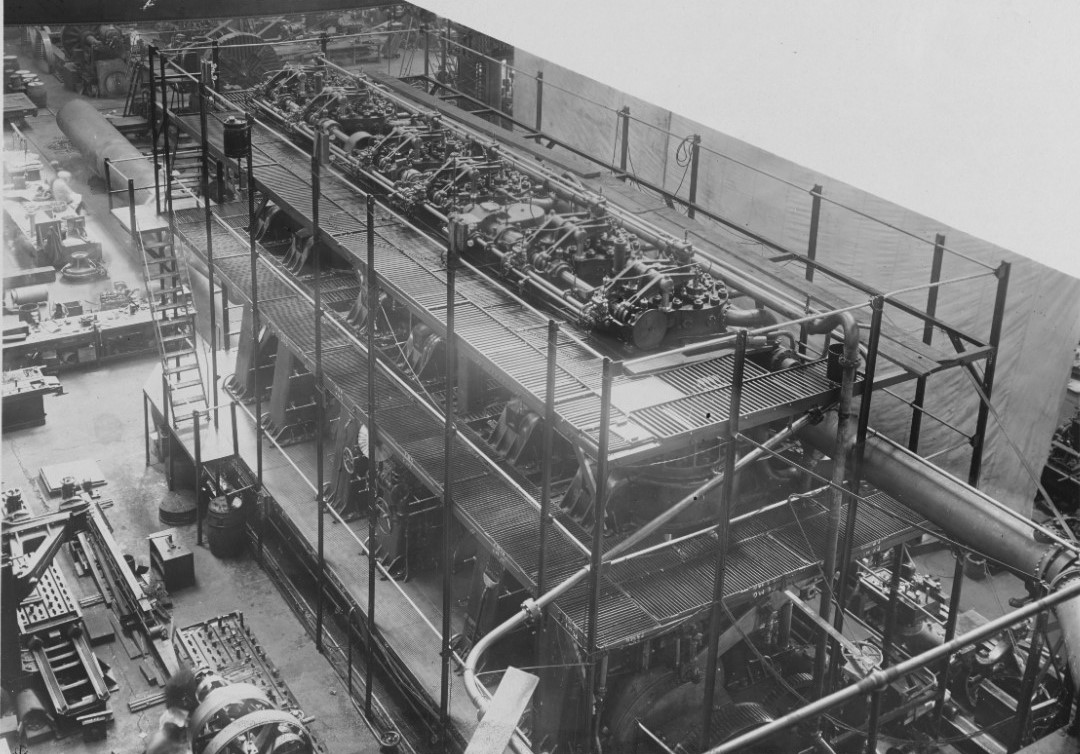

A diesel for USS Maumee, built by a young engineer named Chester Nimitz
Unfortunately, they also had two major disadvantages. First, they were much less powerful per unit weight than steam plants.2 This meant that for most warships, particularly small ones where speed was at a premium, diesels were simply not an option. In theory, they might have been better suited to the large and relatively low-powered capital ships, but their second disadvantage killed off that application. Before WWII, diesels tended to be unreliable, particularly the extremely large and powerful diesels needed to propel big ships. Things were somewhat better in lower-powered designs, which could take advantage of research done for land-based diesel engines.3

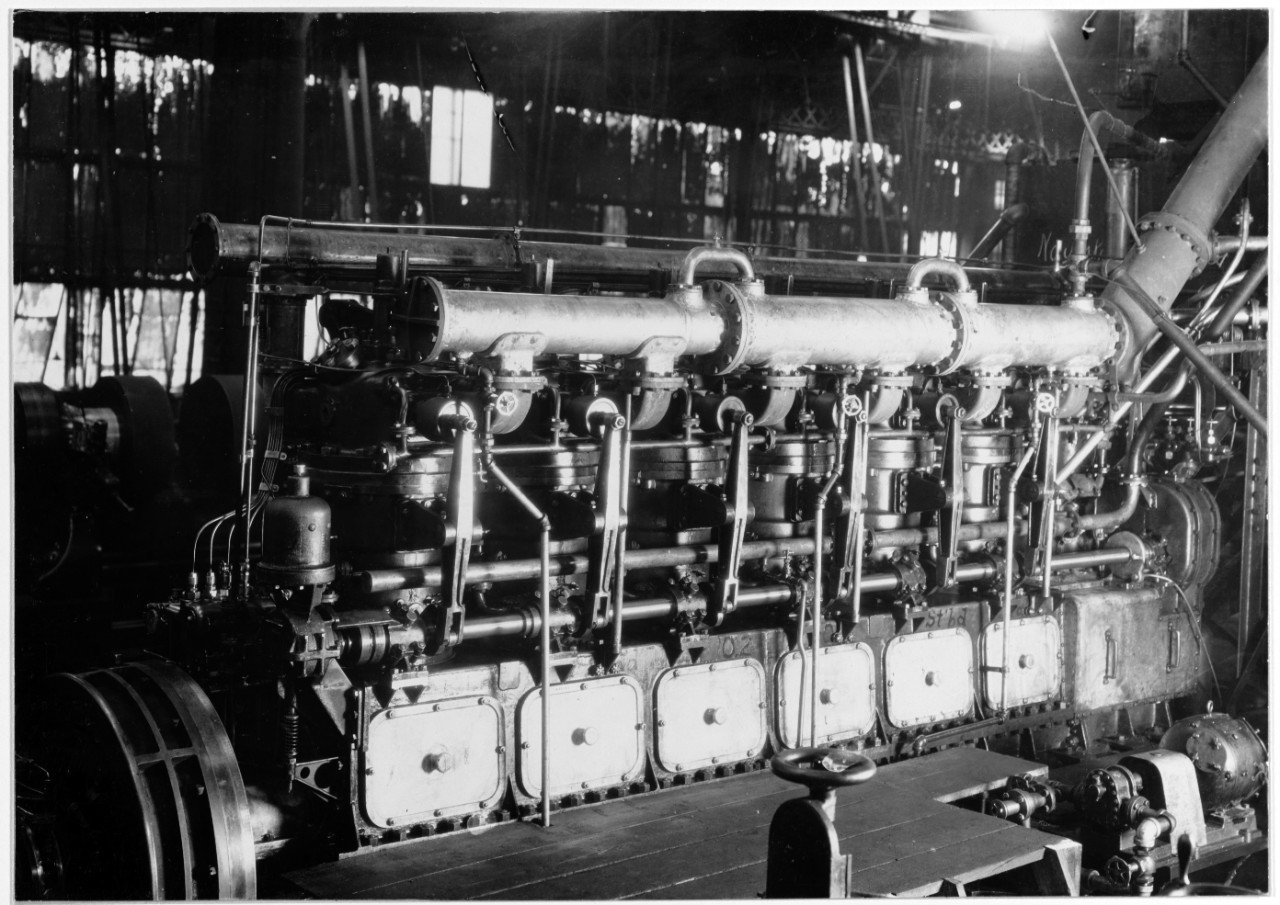

Early submarine diesel for USS O-2
But there was one place where diesels found an immediate niche: submarines. Steam had always been a poor fit for submarines, as the long startup and shutdown times had posed a serious issue for a craft that might have to dive at short notice, and definitely didn't want to sit around on the surface while the plant came online. Most very early submarines used gasoline engines, but the flammability of gasoline meant that it was jettisoned in favor of diesel by 1910, despite the slightly better power-to-weight ratio.4 Diesel was also more efficient, and steam only reappeared in a few submarines intended for high-speed operation with the fleet, most notably the ill-starred British K class. Even today, the primary power source for all non-nuclear submarines is the diesel engine.5

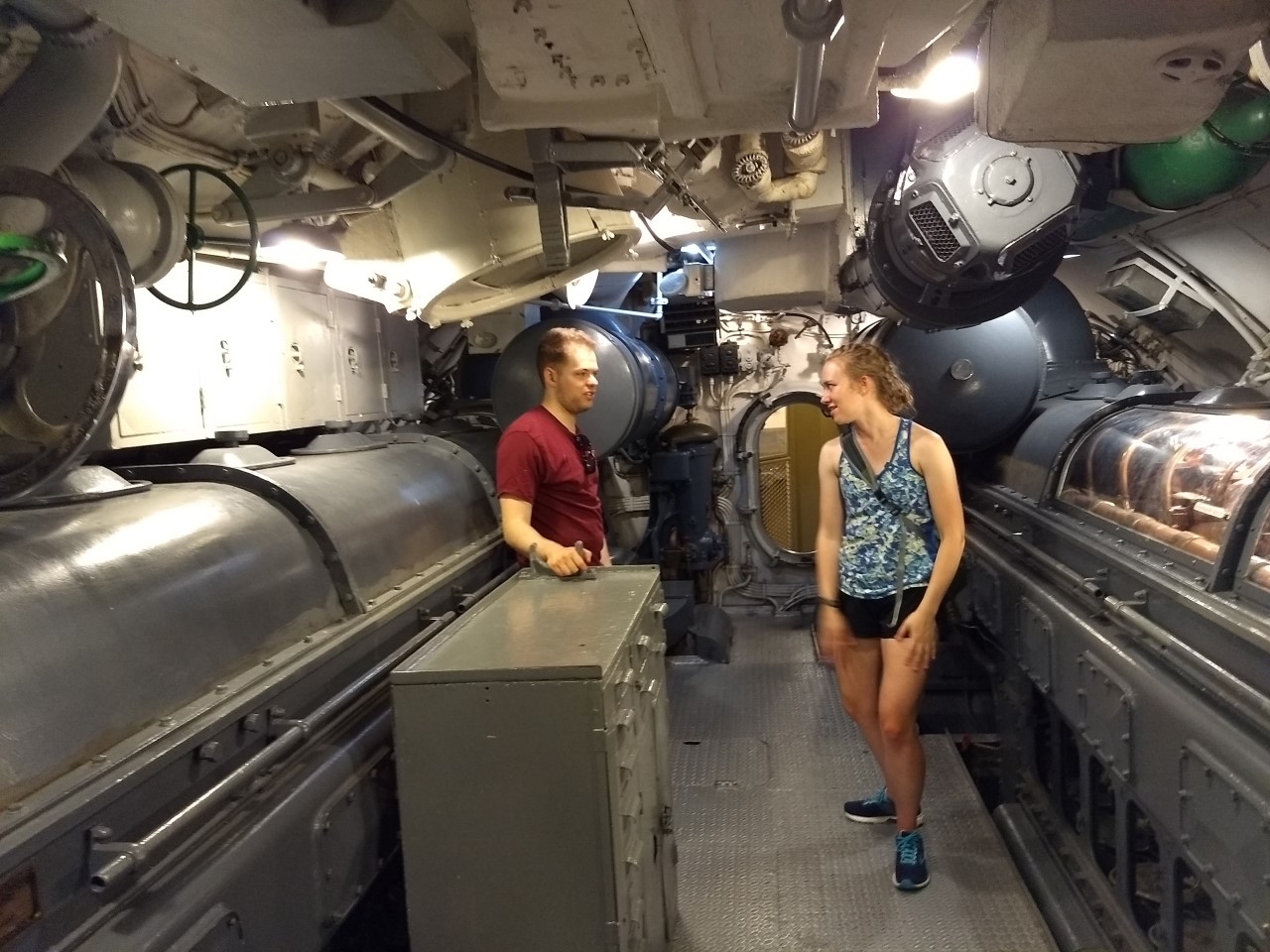

The engineroom aboard Lionfish at Battleship Cove
Most of these submarines had two separate sets of diesels: one that was connected directly to the propellers to provide propulsion on the surface, and another that was connected to a generator to recharge the batteries that propelled the boat underwater. In the early 1930s, the USN, always a leader in such things, chose an alternative approach, where all of the diesels were attached to generators, and power was sent to either the battery for charging or the motors for propulsion as needed. This meant that the plant was somewhat larger and heavier than a direct-drive system, but it did bring several advantages. First, by making the diesels independent of the motors, they could be combined in the most advantageous way, including running the boat on a subset of the engines while others were being worked on. Second, it resolved a problem where if direct-drive diesels were run at a "critical speed", the vibrations on the crankshaft would build up and destroy the engine. Third, it proved very useful postwar. As originally designed, the motors were run at half power underwater and full power on the surface, but when underwater performance became increasingly important after WWII, some fairly simple tweaks, often made as part of the GUPPY program, allowed them higher underwater speed without a major rebuild. Fourth, it isolated the diesels from the rest of the design, and gave builders more options when it came to finding engines. The Bureau of Engineering worked closely with the emerging diesel locomotive industry, and ultimately gave American submariners superb powerplants for their war with Japan.

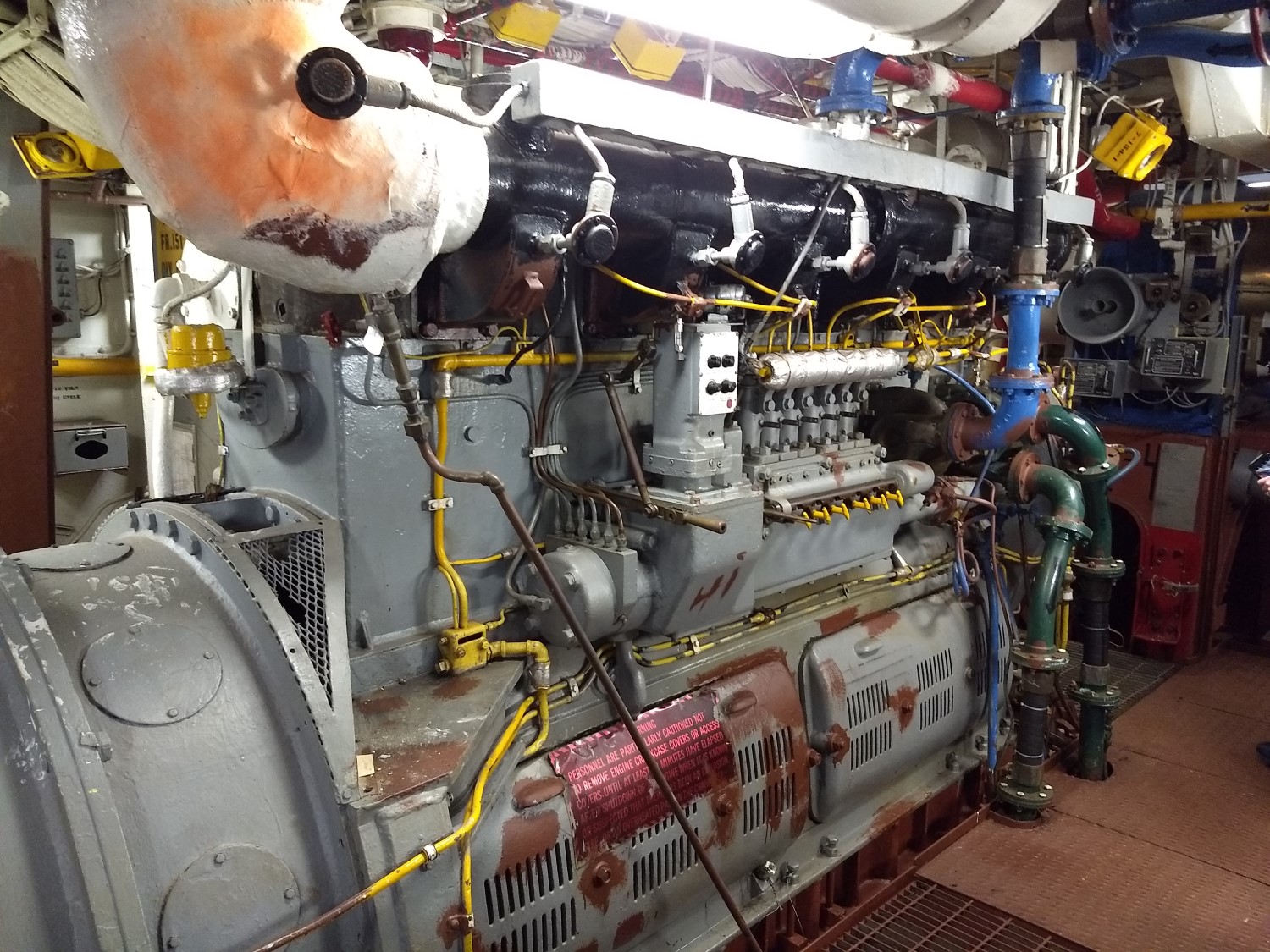

The diesel generator in Iowa's auxiliary machinery room, also derived from a locomotive diesel
Diesels also found wider use on surface ships during the war. Truck diesels powered many small craft, such as the ubiquitous LCVP, while locomotive diesels were used in many larger vessels, thanks to their good reliability and minimal manning requirements. Some, such as the LST, used direct drive,6 large ships tended to use diesel-electric propulsion, with large numbers of diesel generators feeding the motors.7 Most notable were the destroyer escorts, which saw the use of diesel-electric, turbo-electric, geared diesel and geared turbines for otherwise similar ships, based on the ability of American industry to produce the required plants.8
Admiral Scheer of the Deutschland class
But all of these ships used small diesels producing at most 2,000 horsepower, which wasn't really enough for large or fast vessels. Those would require much bigger diesels, purpose-built for marine propulsion. The first major warships to use these were the German Deutschland class "pocket battleships". This was largely a result of their mission as commerce raiders, with the diesels giving a range of 10,000 nm at 20 kts, a distance which even the long-ranged US cruisers could only make 15 kts at. The top speed of around 28 kts took close to 50,000 hp, provided by eight geared diesel engines.9 German leadership in diesel technology meant that the engines were reliable enough, even if they didn't make their designed horsepower, but the ships experienced severe vibration, which rendered much of their fire-control equipment unusable at certain speeds. Design tweaks mitigated this problem, including the development of a special suspension for the forward fire control tower. While modern diesels have less vibration than their 1930s predecessors, this is still a problem, and the USN long considered them unsuited for ASW due to the noise they produced.
Submarine tender Taigei
Other nations were not so lucky. The Japanese investigated diesels on the submarine tender Taigei with the intention of using them on the Yamato, but they proved horribly unreliable. Given that the developed version would be under 8" of armor, they abandoned their plans, and went for pure steam plants instead. This wasn't as much of a change as might be expected. The original plan had been to install about 60,000 shp of diesels and 74,000 shp of turbines, which would give the designers the best of both worlds, with the endurance of diesels for cruising and the power of turbines for top speed. The Germans, after lots of work on the vibration problem, decided to use diesels on the H class battleships, producing 9-cylinder engines with a 65 cm bore and 95 cm stroke, each capable of producing around 13,000 horsepower. The prototype ran reasonably successfully, but the ships were cancelled with the outbreak of war.

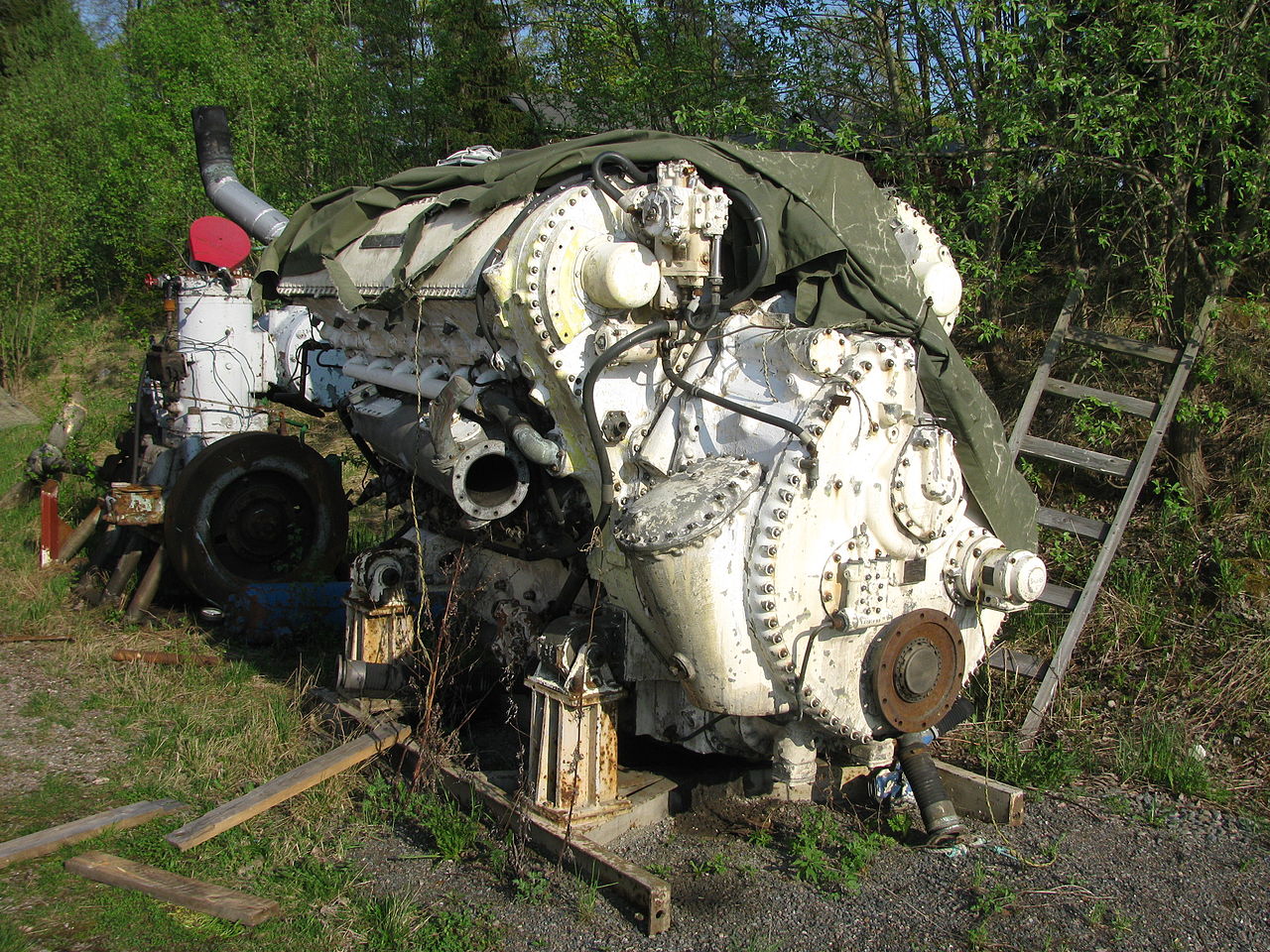

A Napier Deltic engine with three crankshafts, as used on some postwar fast craft
Postwar, heavy marine diesels came to dominate the merchant fleet, and high-speed diesels replaced gasoline engines as the propulsion of choice for fast attack craft. Low-speed marine diesels became common in many auxiliaries, but adoption in the main line of surface warships tended to be limited by the low power-to-weight ratio of the engines. They are more common in ships where running cost is more important than outright power, such as the sort of frigates that end up in the hands of second-rate navies, or in cases where they could be combined with other engines to maximize their virtues. Instead, the big winner of the postwar years in naval propulsion was a derivative of the engine that was revolutionizing aviation: the gas turbine. We'll look at it next time.
1 This isn't to say that conventional steam didn't see more development. In the US, steam conditions reached 1200 psi and 950°F, and experiments were made with pressure-firing, which is essentially like turbocharging for boilers. The 1200 psi plants were not particularly reliable, and pressure-firing was even less so, although the Soviets used it quite a bit. ⇑
2 Pinning down exact figures on this proved far more difficult than expected. On the basis of a number of comparisons in the 1900-1920 period, I got anywhere from "about the same" to "over an order of magnitude better for steam". I don't think either is correct (doing naval weight comparisons is hard) but I suspect the actual advantage for steam was probably in the 3-5x range early, falling some as time went on. ⇑
3 Diesels did find immediate acceptance in auxiliary roles. The British first adopted them to provide power while ships were in port with their boilers shut down. The USN (and ultimately most other powers, including Britain) used them as emergency generators to make sure that the ship wasn't totally disabled if the main steam-powered generators went down. ⇑
4 Gasoline engines were only used in the most power-critical applications, such as PT boats, where the craft themselves were more or less expendable. These were usually aircraft engines, which allowed them to take advantage of the latest developments in that field. I'm not sure if there are some inherent problems with extremely large (multi-thousand horsepower) gasoline engines that prevented them from being used in larger warships, but I wouldn't be surprised if that was the case given the dominance of diesel in the field. Or it could just be the fire hazard. ⇑
5 Some boats use systems that allow them to recharge their batteries without oxygen, but none of these have nearly the energy density or low cost of diesel fuel, so that's used in non-tactical situations. ⇑
6 Note that direct drive for diesels means something different than for steam turbines. With steam turbines, direct-drive means that there's no gearing between the turbine and the shaft, while with diesels, direct-drive means that it's not diesel-electric. ⇑
7 The big difference from submarine practice was the lack of any battery. ⇑
8 An amusing side-note to the diesel propulsion story is the Claud Jones class of American destroyer escorts. Intended as a mobilization design and built to use components that could be mass-produced, it turned out that the diesels required more volume to produce less power than the contemporary steam-powered Dealys, which made the ships too slow to hunt fast submarines. To make matters worse, the gears required were of the size that they expected would be a bottleneck, so the whole program was abandoned after four ships. ⇑
9 One reason that almost all of these designs have so many engines is that heavy diesels are not particularly efficient outside a relatively narrow band. The best way to throttle is to simply cut in an extra engine, which is made easier by how quickly diesels can be throttled. ⇑
