The Battle of the Atlantic saw several fascinating innovations put into large-scale service for the first time. One of these, the Admiralty Operational Intelligence Centre, was an important stage in the development of information-based naval warfare, and formed a critical part of the campaign against Donitz's U-boats.

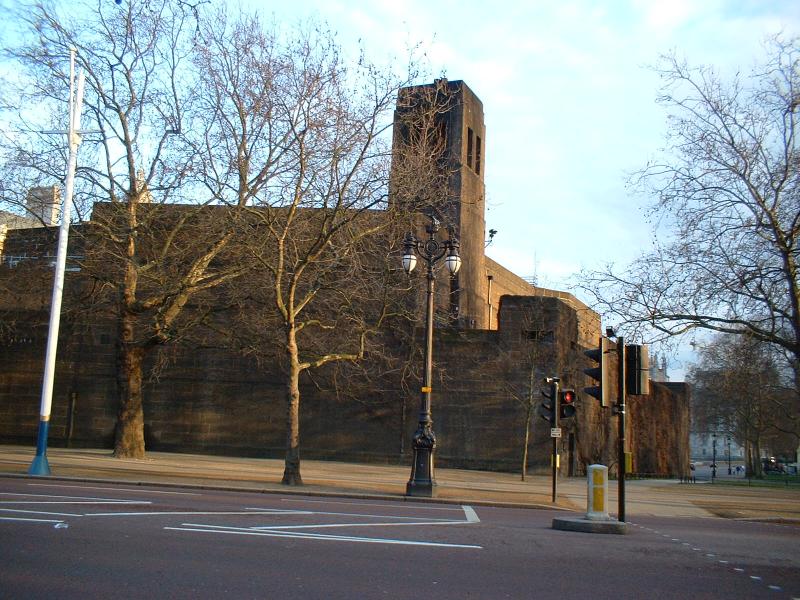

The Admiralty Citadel in London, home to OIC
The OIC had its roots in the concepts developed by Jackie Fisher to synthesize information from multiple sources. These were tested during WWI, where they allowed the British to track German sorties into the North Sea, most prominently at Jutland.
In 1937, Lieutenant-Commander Norman Denning came to the Naval Intelligence Division, and set about putting together an organization charged with handling the data coming in from the Government Code & Cipher School (which relocated to Bletchley Park at the beginning of the war) as well as direction-finding data. He also began to coordinate with Lloyd's, who basically had a monopoly on shipping insurance. Denning's focus on handling data, as opposed to simply collecting it, would make all the difference in the coming war. His organization's excellent performance during the Munich crisis convinced many of its value, and the process of expansion began.
The OIC had originally concentrated on surface ships, but a submarine section was set up in early 1939. I'll focus on its activities in the rest of this post, although it was unable to do much more than plot existing U-boat activity for the first year of the conflict. However, in late 1940, Karl Donitz, commander of the U-boats, began to employ wolfpack tactics, hitting a convoy with multiple U-boats attacking at night on the surface. The main downside to this was that it required more communication, giving Bletchley Park and the direction-finding network more to work with.
Karl Donitz
This played directly into the hands of Rodger Winn, a former lawyer who was a senior civilian in the U-boat section. Winn believed that he could not only track each U-boat, but also predict what it was going to do next, based on location, history, and signals. Even when codebreaking wasn't working, as was the case for much of the early part of the war, the structure and length of the signals could give a great deal of information to a careful observer. Winn proved his point when he thought that a certain submarine would be headed home based on an intercepted signal. This would put it in position to potentially catch a pair of tankers. One was rerouted and arrived safely, the other was left on the original course, and was sunk. Winn was soon commissioned into the Royal Navy Volunteer Reserve without any training, a completely unprecedented honor.
In early 1942, Winn came to the US to aid in setting up American defenses during the German submarine offensive off the US East Coast. Unfortunately, at this point the Germans changed their codes, cutting off the flow of decrypted U-boat messages until the end of the year.1 However, the code in question only applied to U-boats in the Atlantic. U-boats training in the Baltic and minesweepers continued to use older codes which could be read.2 This information, combined with the knowledge of operational patterns gained during 1941, allowed Winn to patch together a system that enabled the OIC to track U-boats without the benefit of decrypts, essentially making educated guesses about each U-boat that sailed (learning of this from the minesweepers) and updating as information came in from direction-finding and the "flaming datums"3 of attacks.
A plotting table4
The resulting "working fiction" proved remarkably accurate, allowing the British to route convoys away from U-boat concentrations, much as they had been able to do when getting decrypted messages from Bletchley Park. Winn and his team kept losses down, even anticipating German moves like deployment of submarines into the South Atlantic, although countering them remained harder. They struggled under the additional handicap that the Germans had broken the convoy routing codes.5 The messages themselves were obfuscated using reference points, but the Germans were able to figure out much of the information.
In December of 1942, when the main U-boat cipher was finally cracked and Bletchley Park was able to resume reading messages, the OIC was able to evaluate the working fiction, and found it to be remarkably accurate. The 160 boats in the North Atlantic were overwhelmingly found to be in the areas they had been plotted in. However, the renewed decrypts were not a panacea. On average, decrypts lagged 24-48 hours behind transmissions, during which time a U-boat could move 320 to 740 nautical miles. While many convoys were routed to safety, others were still attacked, as Donitz had enough U-boats to form extensive patrol lines. The entire North Atlantic quickly became a giant chessboard between the Allied and German control rooms, as each attempted to maneuver its forces to defeat the other.
As the Battle of the Atlantic reached its climax in the first half of 1943, the OIC became increasingly aware of the shift before it showed up in the numbers. Boats were turning back due to mechanical problems with increasing frequency, and the number of kills per boat was falling fast. In February, Winn wrote a paper that described almost exactly how the Germans would react to their worsening situation and under what conditions, although things got worse for them faster than he had anticipated. Many skippers were failing to press their attacks, and an increasing number of convoys sank more U-boats than they lost ships. Finally, on May 24th, Donitz threw in the towel and withdrew from the North Atlantic. Over the previous year, the OIC and its American counterpart had successfully routed about 60% of the convoys clear of the U-boats.

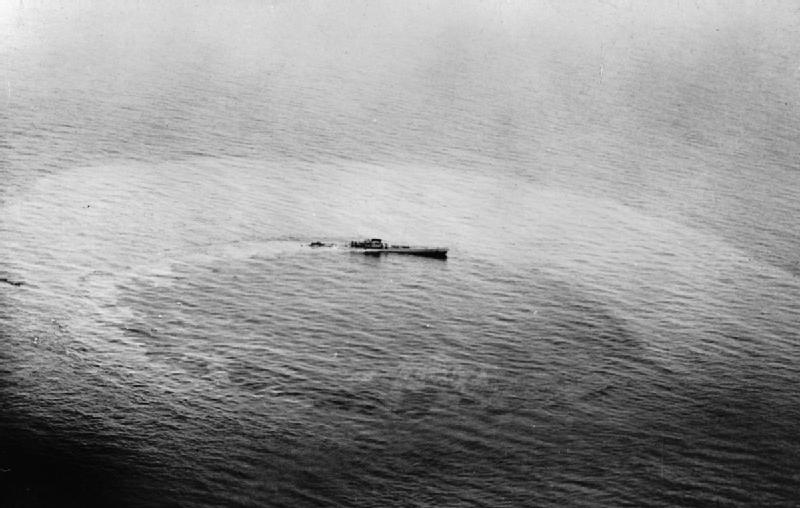

Type XIV U-boat sinking
Unfortunately for Donitz, this gave the allies another opportunity. The majority of his U-boats were quite small, and required refueling to operate in areas like the Central Atlantic, where the escorts were lighter. The tanker U-boats, most notably the purpose-built Type XIVs, were prime targets for the allies, particularly as rendezvous had to be communicated by radio, and the Germans had gotten sloppy. Five were sunk by American forces in July and August, nearly a quarter of the available boats. The OIC was able to detect these changes, as the Germans were forced to pull back their patrols across the entire Central and South Atlantic. The British strengthened their efforts to interdict the Germans traffic across the Bay of Biscay, a subject that deserves a post of its own. OIC was critical to this effort, allowing the hunters to concentrate instead of covering the whole bay.
Donitz tried again in the North Atlantic later in the year, but even improved technology, like an acoustic homing torpedo, failed to turn the tide. Interestingly, decrypts, known as "Special Intelligence", allowed the allies to get a much better evaluation of the torpedo's success than the Germans did, as they had access to the German reports and could also see the results directly.
Type XXI Submarine
The OIC continued to support both the battle of the Atlantic and the broader naval war until the end of the conflict. They provided their estimates of minefields in support of the Normandy invasion, and tracked the submarine buildup intended to counter it. The heavy ASW cover provided to the invasion fleet meant that there was no interference from the U-boats. Later on, as advanced U-boats entered service, the OIC allowed the allies to put countermeasures in place ahead of time, keeping the threat manageable.
The methods developed by the OIC were copied across the Atlantic, and ultimately form one of the cornerstones of modern intelligence work around the world.6
1 The Kriegsmarine had by far the most effective COMSEC (communications security) procedures of the three German services. Luftwaffe traffic was read almost continuously, but was of limited use in the Atlantic battle. ⇑
2 Minesweeper codes gave important insights into German operations in both world wars, as lanes had to be swept to allow ships and submarines to go to sea. The British sometimes planted mines deliberately to gain information on German codes and operational procedures. ⇑
3 Or should this be "flaming data"? ⇑
4 This is actually a filter room plotting table from the Dowding system, because there are no pictures of this kind of stuff. ⇑
5 These codes were apparently too weak because the British vastly underestimated the amount of traffic required, partially due to their prewar focus on radio silence. ⇑
6 This post was based on the excellent book Very Special Intelligence by Patrick Beesly, a wartime member of the OIC. ⇑
